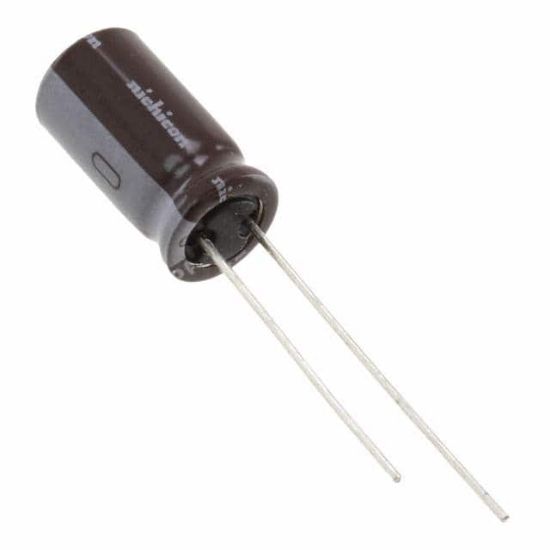

UPA1E391MPD1TD

CAP ALUM 390UF 20% 25V RADIAL

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nichicon

SKU: UPA1E391MPD1TD

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

UPA1E391MPD1TD Description

Operating Temperature	-55°C ~ 105°C
Ripple Current @ Low Frequency	645 mA @ 120 Hz
Mounting Type	Through Hole
Ratings	-
Lead Spacing	0.138\" (3.50mm)
Surface Mount Land Size	-
Size / Dimension	0.315\" Dia (8.00mm)
Package	Cut Tape (CT),Tape & Box (TB)
ESR (Equivalent Series Resistance)	-
Tolerance	±20%
Polarization	Polar
Impedance	62 mOhms
Ripple Current @ High Frequency	860 mA @ 100 kHz
Lifetime @ Temp.	3000 Hrs @ 105°C
Applications	General Purpose
Height - Seated (Max)	0.650\" (16.50mm)
Capacitance	390 μF
RoHS	RoHS
Voltage - Rated	25 V
