PCB Assembly Manufacturing Capabilities

Applications of PCB Assemblies from ONEPCBA

         Onepcba, one-stop EMS PCB Fab, PCB Assembly, Component Sourcing, Function Test.

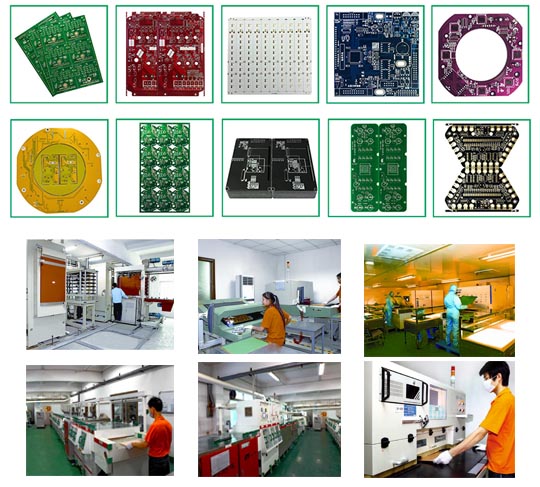

         We have our own PCB and PCB assembly factories and a variety of professional testing equipment.

  • A PCBA prototype is very important to the whole design, due to the small quantity, the price of PCB/PCBA samples is relatively high,

    Onepcba can offer you a low-cost PCB production quotation.

    Please feel free to inquire with us ( info@onepcba.com ), whether it is a relatively small quantity of PCB or a large-scale inquiry, we all provide stable quality, affordable prices, and the best service

Layer Count

1 - 32 Layers

Max Board Dimension

Rigid PCB: 610*610mm; Flexible PCB: 500*2000mm

Copper Thickness

0.5oz - 30oz

Min Board Rigid PCB

Rigid PCB: 0.10mm; Flexible PCB: 0.05mm

Max Board Thickness

Rigid PCB:8.0mm; Flexible PCB:3.0mm

Min Line Width/Line Space

Normal: 4/4mil(0.10mm); HDI: 2/2mil(0.05mm)

Maximum square part size74mm × 74mm
Maximum component height25mm
PCB thickness0.3mm to 4mm
Minimum SMD package01005 (0.4mm × 0.2mm)
