SE40PGHM3_A/H

DIODE GEN PURP 200V 2.4A TO277A

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay General Semiconductor - Diodes Division

SKU: SE40PGHM3_A/H

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SE40PGHM3_A/H Description

Capacitance @ Vr, F	28pF @ 4V, 1MHz
Mounting Type	Surface Mount

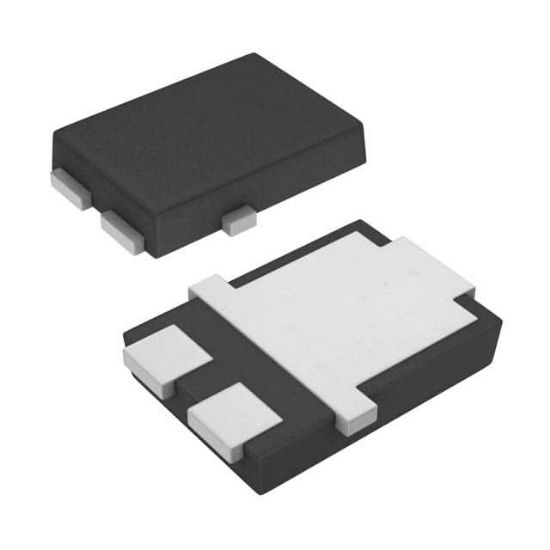

Supplier Device Package	TO-277A (SMPC)
Diode Type	Standard
Operating Temperature - Junction	-55°C ~ 175°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	1.05 V @ 4 A
Current - Reverse Leakage @ Vr	10 μA @ 200 V
Reverse Recovery Time (trr)	2.2 μs
Voltage - DC Reverse (Vr) (Max)	200 V
Current - Average Rectified (Io)	2.4A
RoHS	RoHS
Speed	Standard Recovery >500ns, > 200mA (Io)
