STP12PF06

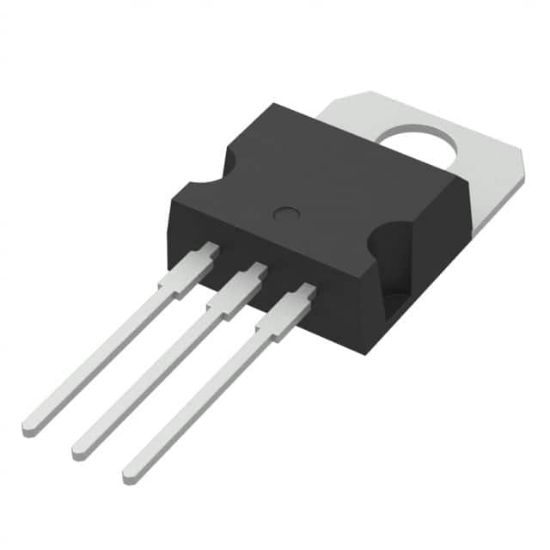

MOSFET P-CH 60V 12A TO220AB

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STP12PF06

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STP12PF06 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
P12PF06	STP12PF06		TO-220	3	P-CHANNEL 60V - 0.18 - 12A STripFET II POWER MOSFET

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Rds On (Max) @ Id, Vgs	200mOhm @ 10A, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	60W (Tc)
Drain to Source Voltage (Vdss)	60 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	21 nC @ 10 V
Supplier Device Package	TO-220
Input Capacitance (Ciss) (Max) @ Vds	850 pF @ 25 V
RoHS	RoHS
