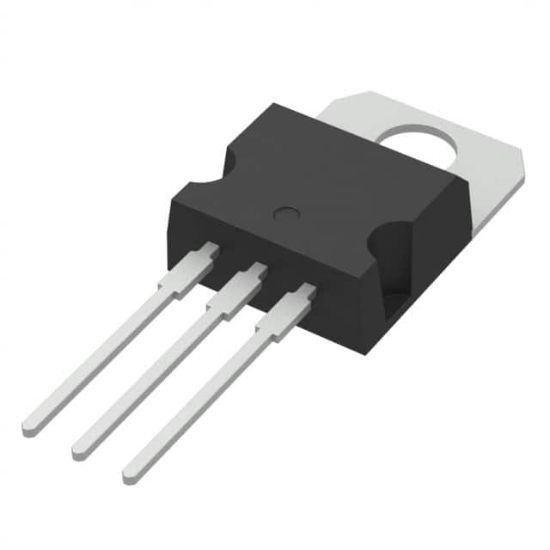

STP10NM50N

MOSFET N-CH 500V 7A TO220

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STP10NM50N

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STP10NM50N Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	7A (Tc)
Rds On (Max) @ Id, Vgs	630mOhm @ 3.5A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	70W (Tc)
Drain to Source Voltage (Vdss)	500 V
Vgs (Max)	±25V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 10 V
Supplier Device Package	TO-220
Input Capacitance (Ciss) (Max) @ Vds	450 pF @ 50 V
RoHS	RoHS
