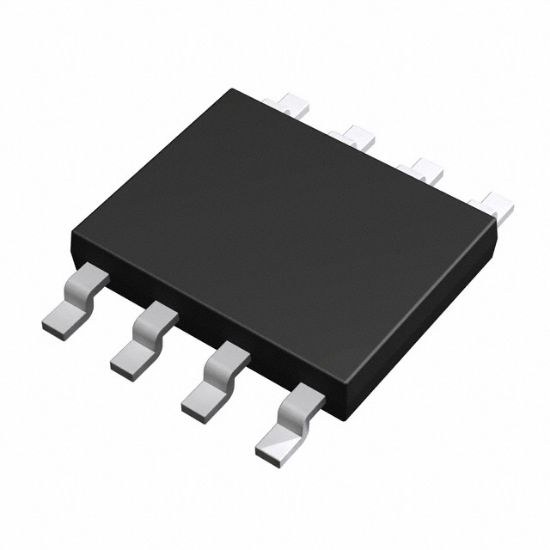

SP8J5FRATB

4V DRIVE PCH+PCH MOSFET (CORRESP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rohm Semiconductor

SKU: SP8J5FRATB

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SP8J5FRATB Description

Operating Temperature	150°C
FET Feature	Logic Level Gate, 4V Drive
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Current - Continuous Drain (Id) @ 25°C	7A (Ta)
Rds On (Max) @ Id, Vgs	28mOhm @ 7A, 10V
FET Type	2 P-Channel (Dual)
Power - Max	-
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	-
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	-
RoHS	RoHS
