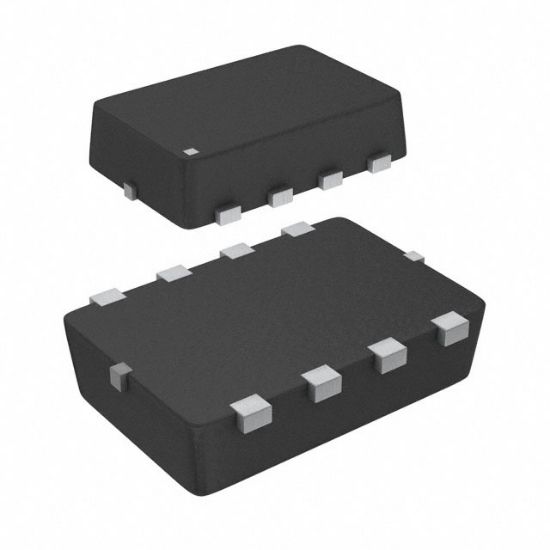

AON4803

MOSFET 2P-CH 20V 3.4A DFN3X2

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AON4803

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AON4803 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
4803	AON4803	Aosmd	DFN 3x2A-8	8	20V双P沟道MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (3x2)
Current - Continuous Drain (Id) @ 25°C	3.4A
Rds On (Max) @ Id, Vgs	90mOhm @ 3.4A, 4.5V
FET Type	2 P-Channel (Dual)
Power - Max	1.7W
Package	Tape & Reel (TR)
Drain to Source Voltage (Vdss)	20V
Vgs(th) (Max) @ Id	1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	745pF @ 10V
RoHS	RoHS
