RT9020-25GB

IC REG LINEAR 2.5V 500MA SOT23-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Richtek USA Inc.

SKU: RT9020-25GB

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

RT9020-25GB Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
2A=	RT9020-25GB	RICHTEK	SOT-23-5	5

Operating Temperature	-40°C ~ 85°C
Voltage Dropout (Max)	0.32V @ 400mA
Voltage - Output (Min/Fixed)	2.5V
Mounting Type	Surface Mount
Current - Output	500mA
PSRR	55dB (10kHz)
Current - Supply (Max)	-
Protection Features	Over Current, Over Temperature
Output Configuration	Positive
Package	Tape & Reel (TR)
Control Features	Enable, Soft Start
Voltage - Input (Max)	5.5V

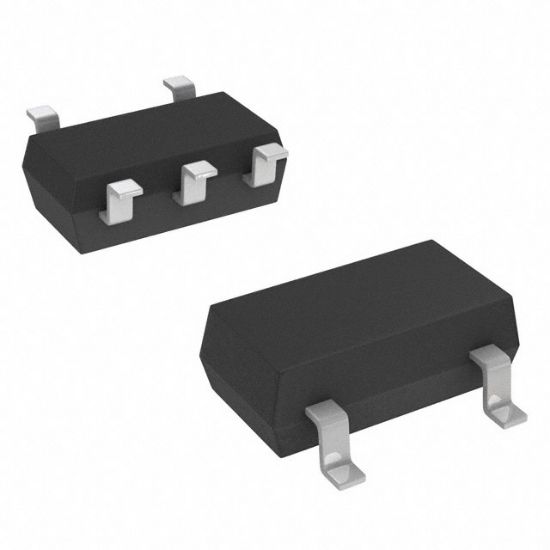

Supplier Device Package	SOT-23-5
Number of Regulators	1
Current - Quiescent (Iq)	50 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
