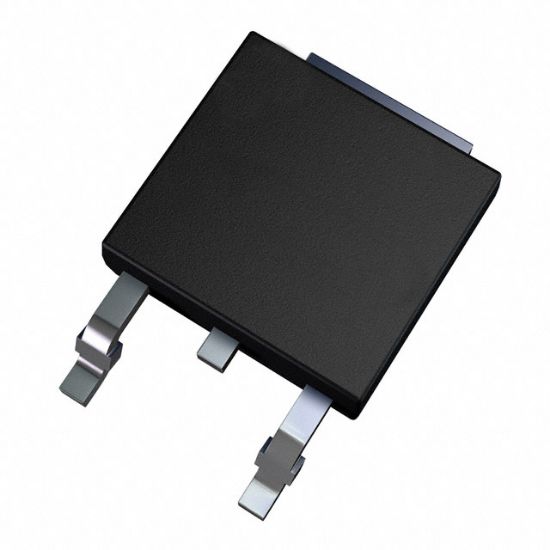

STD78N75F4

MOSFET N-CH 75V 78A DPAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STD78N75F4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STD78N75F4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
78N75F4	STD78N75F4		DPAK	0	N-channel 75 V, 0.0092 78 A STripFET DeepGATE Power MOSFET

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	78A (Tc)
Rds On (Max) @ Id, Vgs	11mOhm @ 35A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	125W (Tc)
Drain to Source Voltage (Vdss)	75 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	76 nC @ 10 V
Supplier Device Package	DPAK
Input Capacitance (Ciss) (Max) @ Vds	5015 pF @ 25 V
RoHS	RoHS
