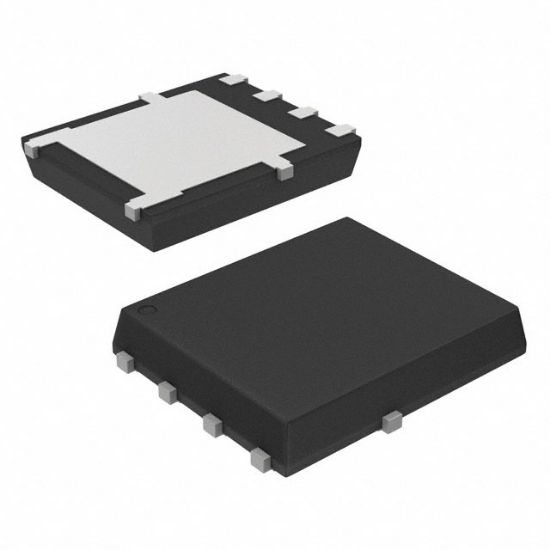

NTMFS4744NT3G

MOSFET N-CH 30V 7A 5DFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTMFS4744NT3G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTMFS4744NT3G Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	7A (Ta)
Rds On (Max) @ Id, Vgs	7.6mOhm @ 30A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 11.5V
Package	Tape & Reel (TR),Bulk
Power Dissipation (Max)	880mW (Ta), 47.2W (Tc)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 4.5 V
Supplier Device Package	5-DFN (5x6) (8-SOFL)
Input Capacitance (Ciss) (Max) @ Vds	1300 pF @ 12 V
RoHS	RoHS
