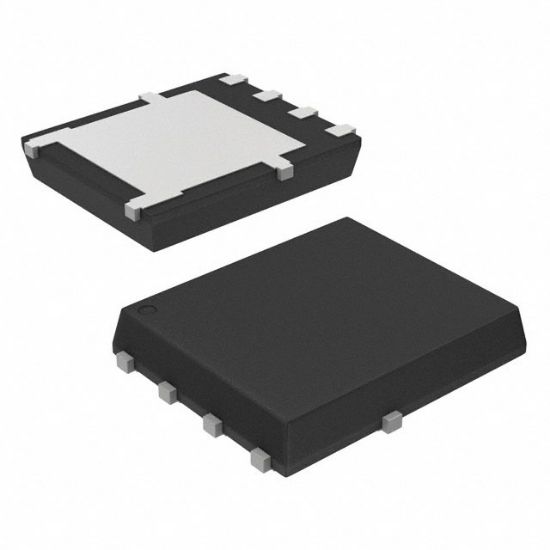

NTMFS6H800NT1G

MOSFET N-CH 80V 28A/203A 5DFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTMFS6H800NT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTMFS6H800NT1G Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	28A (Ta), 203A (Tc)
Rds On (Max) @ Id, Vgs	2.1mOhm @ 50A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Power Dissipation (Max)	3.8W (Ta), 200W (Tc)
Drain to Source Voltage (Vdss)	80 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 330μA
Gate Charge (Qg) (Max) @ Vgs	85 nC @ 10 V
Supplier Device Package	5-DFN (5x6) (8-SOFL)
Input Capacitance (Ciss) (Max) @ Vds	5530 pF @ 40 V
RoHS	RoHS
