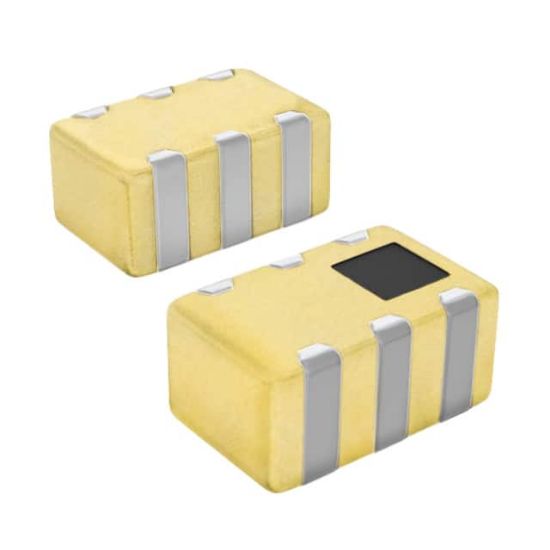

HHM2319B2

RF DIR COUPLER 824-915MHZ 0805

1 review(s) | Add your review

Availability: In stock

Manufacturer: TDK Corporation

SKU: HHM2319B2

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HHM2319B2 Description

Return Loss	-
Power - Max	-
Supplier Device Package	0805
Frequency	824MHz ~ 915MHz, 1.71GHz ~ 1.91GHz
RoHS	RoHS
Applications	AGSM, DCS, PCS
Coupling Factor	-20 ± 1dB
Isolation	28dB
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Insertion Loss	0.3dB
Coupler Type	Dual Band, Dual Path
