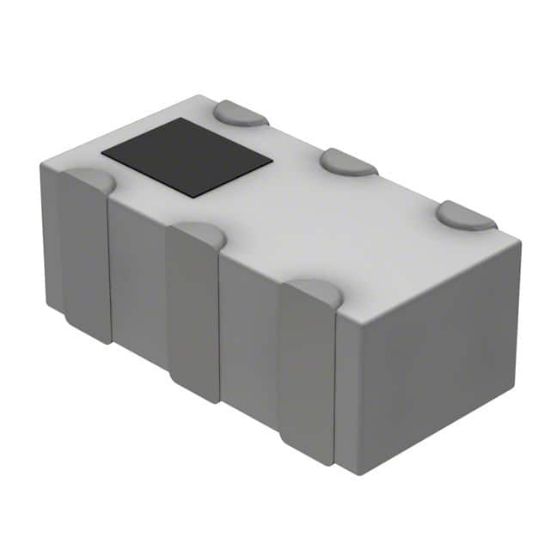

HHM1517A2

BALUN 2.3GHZ-2.5GHZ 50/50 0805

1 review(s) | Add your review

Availability: In stock

Manufacturer: TDK Corporation

SKU: HHM1517A2

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HHM1517A2 Description

Phase Difference	180° ±10°
Return Loss (Min)	10dB
RoHS	RoHS
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Impedance - Unbalanced/Balanced	50 / 50Ohm
Insertion Loss (Max)	1.2dB
Mounting Type	Surface Mount
Frequency Range	2.3GHz ~ 2.5GHz
