DG211CY-7393446

QUAD SPST CMOS ANALOG SWITCH

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: DG211CY-7393446

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DG211CY-7393446 Description

Operating Temperature	0°C ~ 70°C (TA)
Channel Capacitance (CS(off), CD(off))	5pF, 5pF
On-State Resistance (Max)	175Ohm
Mounting Type	Surface Mount

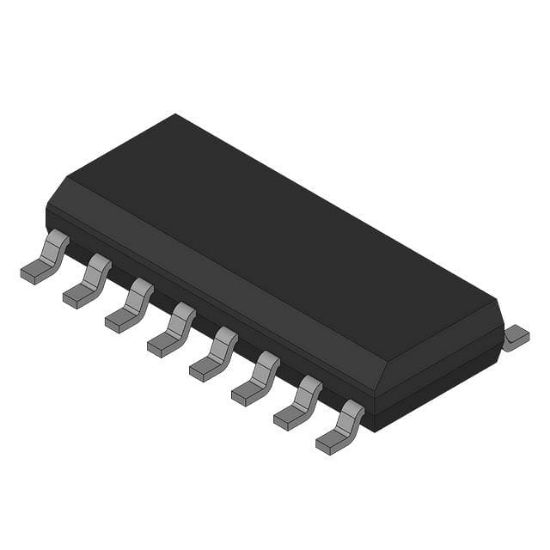

Supplier Device Package	16-SOIC
Switch Circuit	SPST - NC
Voltage - Supply, Dual (V±)	±15V
Number of Circuits	4
Package	Tube
Charge Injection	-
Switch Time (Ton, Toff) (Max)	460ns, 450ns
Voltage - Supply, Single (V+)	-
Crosstalk	-90dB @ 100kHz
Multiplexer/Demultiplexer Circuit	1:1
Channel-to-Channel Matching (ΔRon)	-
-3db Bandwidth	-
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	5nA
