DG2015DN-T1-E4

IC SWITCH DUAL DPDT 16QFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay Siliconix

SKU: DG2015DN-T1-E4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DG2015DN-T1-E4 Description

Operating Temperature	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	67pF
On-State Resistance (Max)	1.6Ohm
Mounting Type	Surface Mount

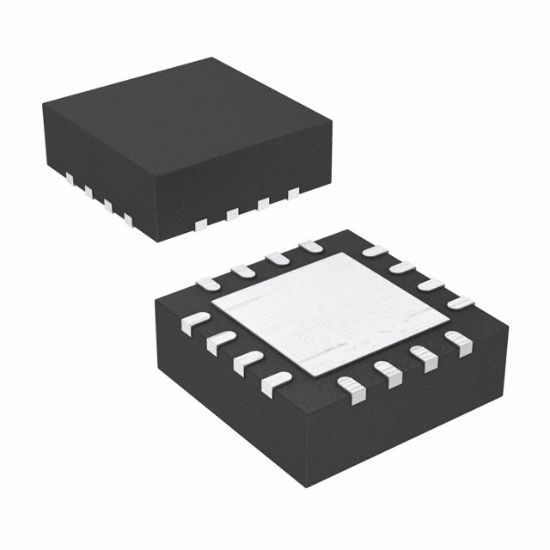

Supplier Device Package	16-QFN (4x4)
Switch Circuit	DPDT
Voltage - Supply, Dual (V±)	-
Number of Circuits	2
Package	Tape & Reel (TR)
Charge Injection	7pC
Switch Time (Ton, Toff) (Max)	40ns, 35ns
Voltage - Supply, Single (V+)	2.7V ~ 3.3V
Crosstalk	-70dB @ 1MHz
Multiplexer/Demultiplexer Circuit	2:2
Channel-to-Channel Matching (ΔRon)	150mOhm
-3db Bandwidth	-
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	1nA
