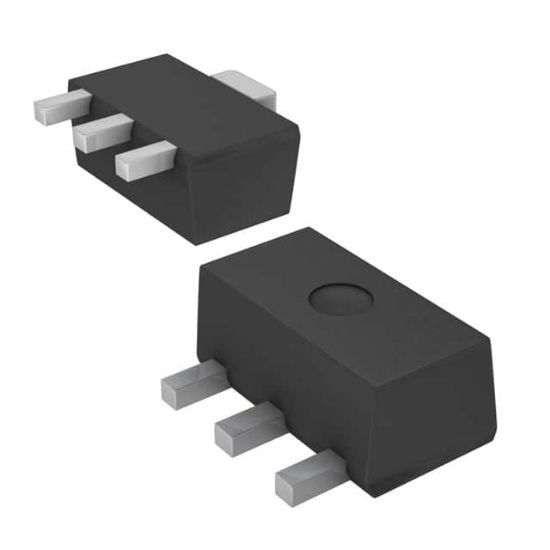

ZXTP5401ZTA

TRANS PNP 150V 0.6A SOT89

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZXTP5401ZTA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZXTP5401ZTA Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 5mA, 50mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	600 mA
Supplier Device Package	SOT-89-3
Current - Collector Cutoff (Max)	50nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	150 V
Power - Max	1.2 W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 10mA, 5V
Frequency - Transition	100MHz
RoHS	RoHS
Transistor Type	PNP
