ZXM61P02FTA

MOSFET P-CH 20V 900MA SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZXM61P02FTA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZXM61P02FTA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
P02	ZXM61P02FTA	ZETEX	SOT-23/SC-59	0	场效应管FET MOSFET-P沟道MOSFET P-Channel

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	900mA (Ta)
Rds On (Max) @ Id, Vgs	600mOhm @ 610mA, 4.5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 4.5V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	625mW (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±12V
Vgs(th) (Max) @ Id	1.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	3.5 nC @ 4.5 V

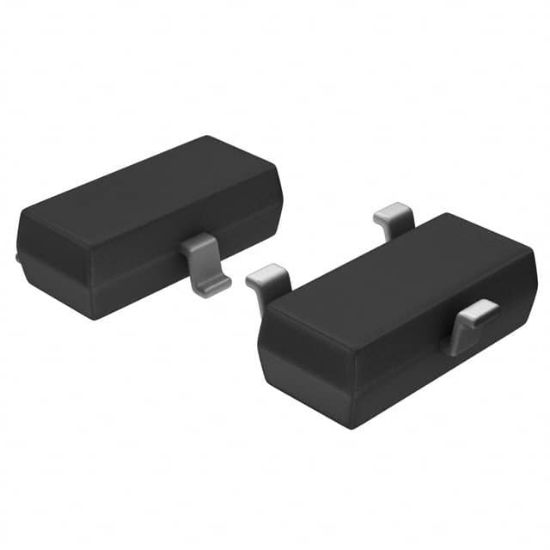

Supplier Device Package	SOT-23-3
Input Capacitance (Ciss) (Max) @ Vds	150 pF @ 15 V
RoHS	RoHS
