ZVP4105ASTOA

MOSFET P-CH 50V 175MA E-LINE

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZVP4105ASTOA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZVP4105ASTOA Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	175mA (Ta)
Rds On (Max) @ Id, Vgs	10Ohm @ 100mA, 5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	5V
Package	Tape & Reel (TR)
Power Dissipation (Max)	625mW (Ta)
Drain to Source Voltage (Vdss)	50 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

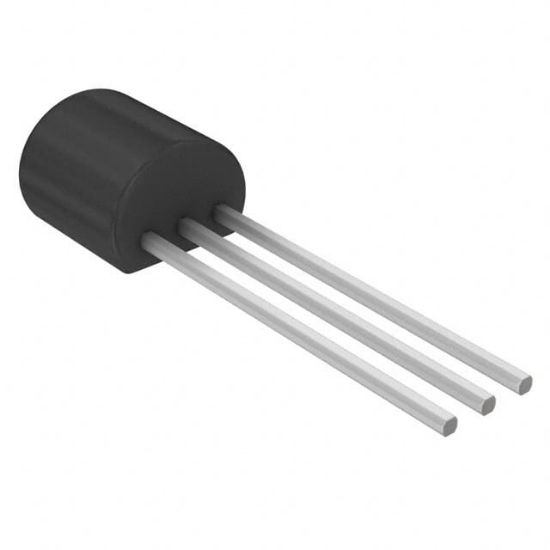

Supplier Device Package	E-Line (TO-92 compatible)
Input Capacitance (Ciss) (Max) @ Vds	40 pF @ 25 V
RoHS	RoHS
