ZVN1409ASTOB

MOSFET N-CH 90V 10MA E-LINE

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZVN1409ASTOB

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZVN1409ASTOB Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	10mA (Ta)
Rds On (Max) @ Id, Vgs	250Ohm @ 5mA, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	625mW (Ta)
Drain to Source Voltage (Vdss)	90 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.4V @ 100μA
Gate Charge (Qg) (Max) @ Vgs	-

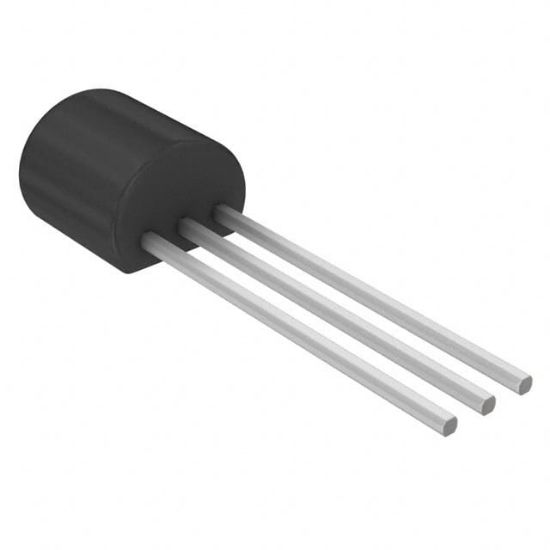

Supplier Device Package	E-Line (TO-92 compatible)
Input Capacitance (Ciss) (Max) @ Vds	6.5 pF @ 25 V
RoHS	RoHS
