ZHCS756TA

DIODE SCHOTTKY 60V 750MA SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZHCS756TA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZHCS756TA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
Z76	ZHCS756TA	ZETEX	SOT-23/SC-59	0	二极管Diodes 肖特基势垒二极管SBDSchottky Barrier Diodes 单管Single

Capacitance @ Vr, F	17pF @ 25V, 1MHz
Mounting Type	Surface Mount

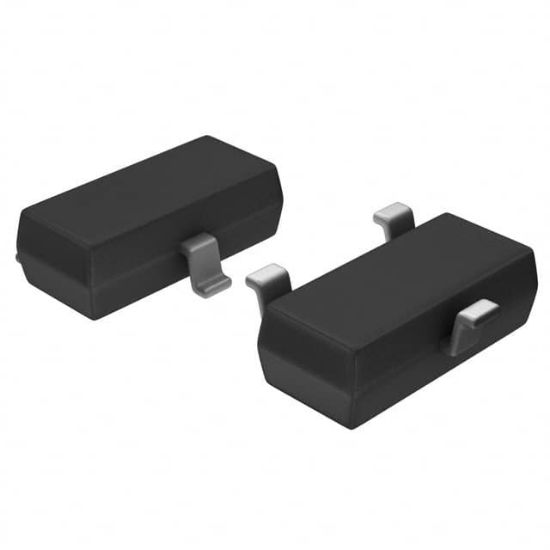

Supplier Device Package	SOT-23-3
Diode Type	Schottky
Operating Temperature - Junction	125°C (Max)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	610 mV @ 750 mA
Current - Reverse Leakage @ Vr	100 μA @ 45 V
Reverse Recovery Time (trr)	12 ns
Voltage - DC Reverse (Vr) (Max)	60 V
Current - Average Rectified (Io)	750mA (DC)
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
