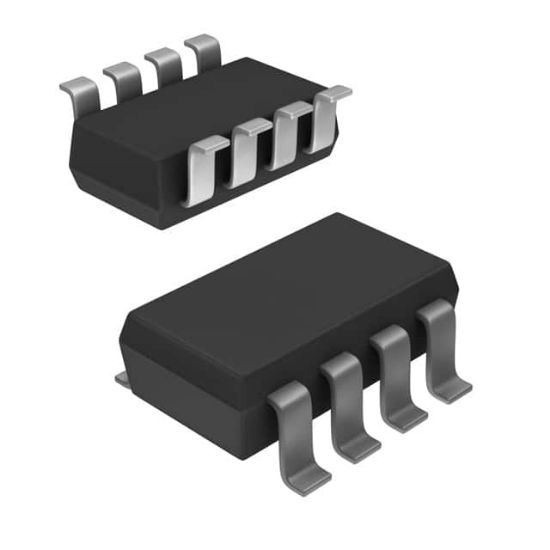

ZDT6718TA

TRANS NPN/PNP 20V 2A/1.5A SM8

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZDT6718TA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZDT6718TA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
T6718	ZDT6718TA	ZETEX	sm-8	0	三极管Bipolar Junction Transistors(BJT) 复合三极管Complex Bipolar Transistor NPN+PNP

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	200mV @ 50mA, 2.5A, 220mV @ 50mA, 1.5A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	2A, 1.5A
Supplier Device Package	SM8
Current - Collector Cutoff (Max)	100nA
Voltage - Collector Emitter Breakdown (Max)	20V
Power - Max	2.5W
Package	Tape & Reel (TR),Cut Tape (CT)
DC Current Gain (hFE) (Min) @ Ic, Vce	300 @ 200mA, 2V / 300 @ 100mA, 2V
Frequency - Transition	140MHz, 180MHz
RoHS	RoHS
Transistor Type	NPN, PNP
