Z2SMB39

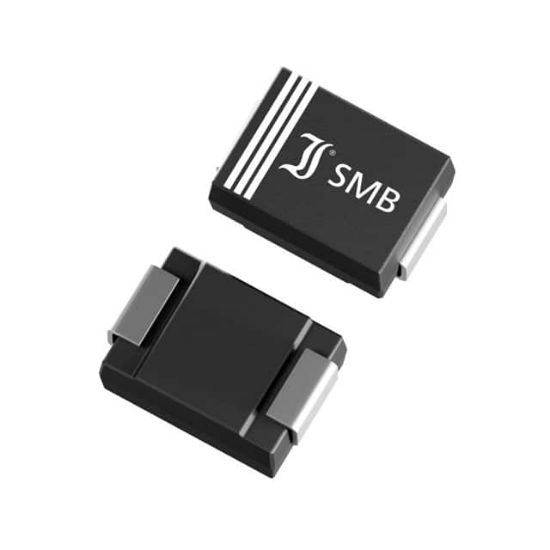

DIODE ZENER 39V 2W SMB

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diotec Semiconductor

SKU: Z2SMB39

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

Z2SMB39 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
GY	Z2SMB39		SMB	0	2.0 W Glass Passivated Zener Diode

Impedance (Max) (Zzt)	20 Ohms
Power - Max	2 W
Voltage - Forward (Vf) (Max) @ If	-
Operating Temperature	-50°C ~ 150°C (TJ)
RoHS	RoHS
Current - Reverse Leakage @ Vr	1 μA @ 20 V
Mounting Type	Surface Mount
Supplier Device Package	SMB (DO-214AA)
Package	Tape & Reel (TR),Strip
Voltage - Zener (Nom) (Vz)	39 V
Tolerance	±5%
