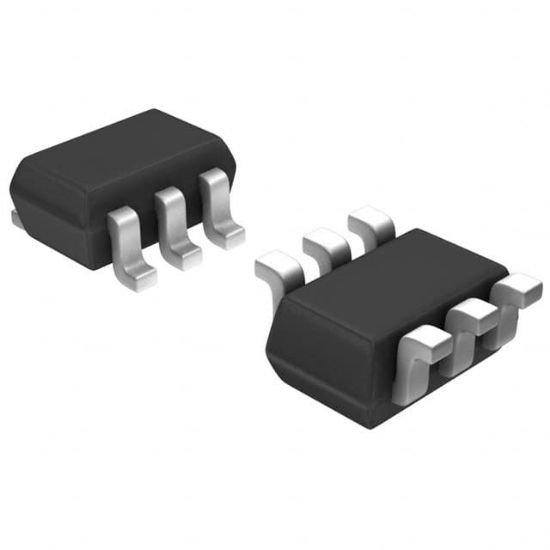

XP0643500L

TRANS 2PNP 20V 0.03A SMINI6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: XP0643500L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

XP0643500L Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	100mV @ 1mA, 10mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	30mA
Supplier Device Package	SMINI6-G1
Current - Collector Cutoff (Max)	100μA
Voltage - Collector Emitter Breakdown (Max)	20V
Power - Max	150mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 1mA, 10V
Frequency - Transition	150MHz
RoHS	RoHS
Transistor Type	2 PNP (Dual)
