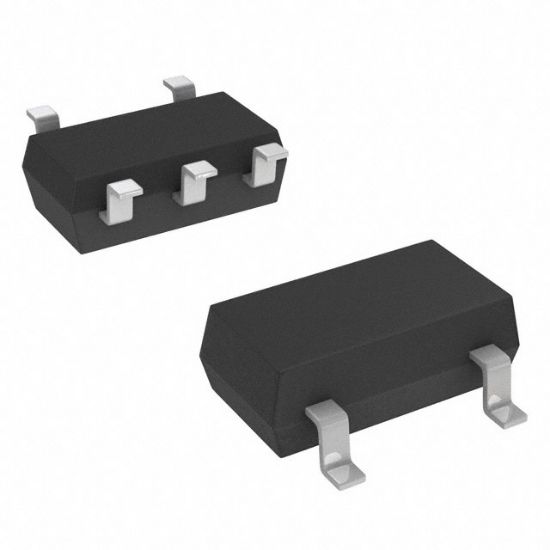

XP0150400L

TRANS 2NPN 20V 0.3A SMINI5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: XP0150400L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

XP0150400L Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	100mV @ 3mA, 30mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	300mA
Supplier Device Package	SMini5-G1
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	20V
Power - Max	150mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	500 @ 4mA, 2V
Frequency - Transition	80MHz
RoHS	RoHS
Transistor Type	2 NPN (Dual)
