VN0550N3-G-P013

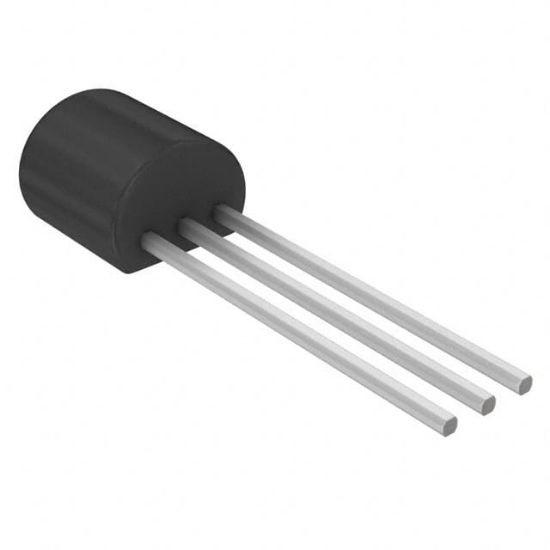

MOSFET N-CH 500V 50MA TO92-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: VN0550N3-G-P013

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

VN0550N3-G-P013 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	50mA (Tj)
Rds On (Max) @ Id, Vgs	60Ohm @ 50mA, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Package	Tape & Box (TB)
Power Dissipation (Max)	1W (Tc)
Drain to Source Voltage (Vdss)	500 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-
Supplier Device Package	TO-92-3
Input Capacitance (Ciss) (Max) @ Vds	55 pF @ 25 V
RoHS	RoHS
