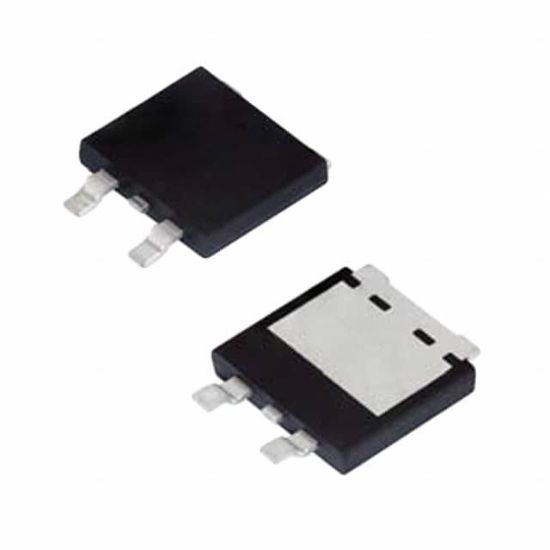

V10D100CHM3/I

DIODE ARRAY GP TO263AC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay General Semiconductor - Diodes Division

SKU: V10D100CHM3/I

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

V10D100CHM3/I Description

Current - Average Rectified (Io) (per Diode)	5A
Mounting Type	Surface Mount
Supplier Device Package	TO-263AC (SMPD)
Diode Type	Schottky
Operating Temperature - Junction	-40°C ~ 150°C
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	750 mV @ 5 A
Current - Reverse Leakage @ Vr	500 μA @ 100 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	100 V
Diode Configuration	1 Pair Common Cathode
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
