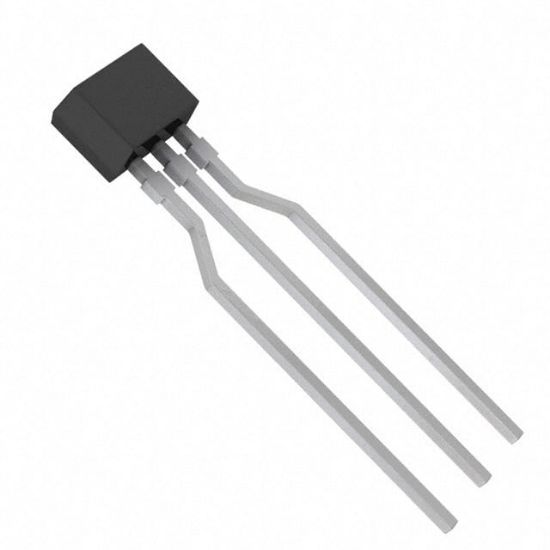

UNR421K00A

TRANS PREBIAS NPN 300MW NS-B1

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: UNR421K00A

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

UNR421K00A Description

Vce Saturation (Max) @ Ib, Ic	250mV @ 300μA, 10mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	100 mA
Supplier Device Package	NS-B1
Current - Collector Cutoff (Max)	500nA
Voltage - Collector Emitter Breakdown (Max)	50 V
Power - Max	300 mW
Package	Cut Tape (CT),Tape & Box (TB)
Resistor - Emitter Base (R2)	4.7 kOhms
Resistor - Base (R1)	10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 5mA, 10V
Frequency - Transition	150 MHz
RoHS	RoHS
Transistor Type	NPN - Pre-Biased
