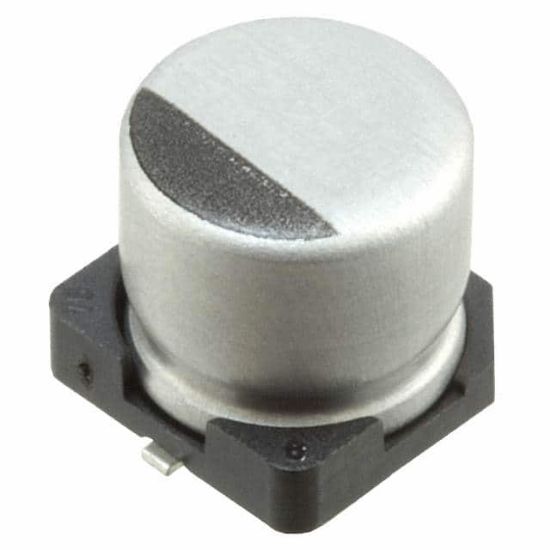

UCD1H220MCL1GS

CAP ALUM 22UF 20% 50V SMD

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nichicon

SKU: UCD1H220MCL1GS

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

UCD1H220MCL1GS Description

Operating Temperature	-55°C ~ 105°C
Ripple Current @ Low Frequency	85 mA @ 120 Hz
Mounting Type	Surface Mount
Ratings	AEC-Q200
Lead Spacing	-
Surface Mount Land Size	0.260\" L x 0.260\" W (6.60mm x 6.60mm)
Size / Dimension	0.248\" Dia (6.30mm)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
ESR (Equivalent Series Resistance)	-
Tolerance	±20%
Polarization	Polar
Impedance	860 mOhms
Ripple Current @ High Frequency	170 mA @ 100 kHz
Lifetime @ Temp.	5000 Hrs @ 105°C
Applications	Automotive
Height - Seated (Max)	0.240\" (6.10mm)
Capacitance	22 μF
RoHS	RoHS
Voltage - Rated	50 V
