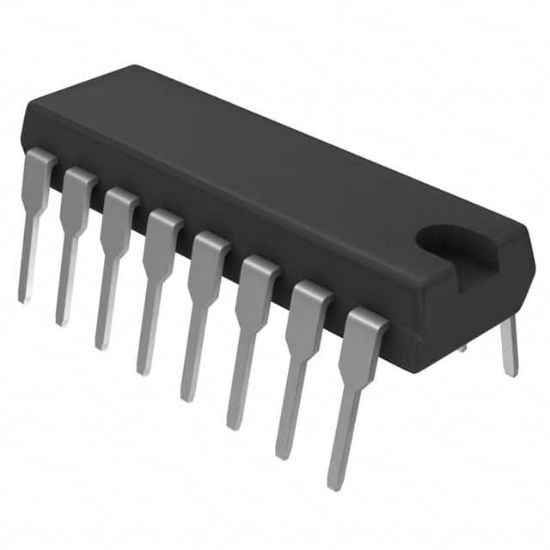

UCC2580N-3

IC REG CTRLR FWRD CONV 16DIP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: UCC2580N-3

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

UCC2580N-3 Description

Operating Temperature	-40°C ~ 85°C (TA)
Frequency - Switching	400kHz
Output Phases	1
Clock Sync	No
Supplier Device Package	16-PDIP
Synchronous Rectifier	No
Serial Interfaces	-
Function	Step-Up/Step-Down
Mounting Type	Through Hole
Output Configuration	Positive or Negative
Package	Tube,Tube
Control Features	Enable, Ramp, Soft Start
Duty Cycle (Max)	66%
Topology	Forward Converter
Voltage - Supply (Vcc/Vdd)	8.5V ~ 16V
Number of Outputs	2
RoHS	RoHS
Output Type	Transistor Driver
