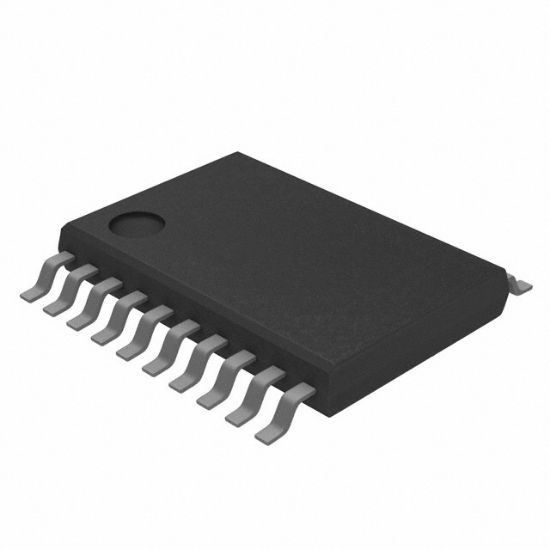

TXS0108EQPWRQ1

IC TRNSLTR BIDIRECTIONAL 20TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TXS0108EQPWRQ1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TXS0108EQPWRQ1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
YF08EQ1	TXS0108EQPWRQ1	TI	20	0	8-Bit Bi-directional, Level-Shifting, Voltage Translator for Open-Drain and Push-Pull Applications

Operating Temperature	-40°C ~ 125°C (TA)
Voltage - VCCA	1.4 V ~ 3.6 V
Data Rate	110Mbps
Output Signal	-
Input Signal	-
Number of Circuits	1
Channels per Circuit	8
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Channel Type	Bidirectional
Voltage - VCCB	1.65 V ~ 5.5 V
Mounting Type	Surface Mount
Supplier Device Package	20-TSSOP
Translator Type	Voltage Level
Features	Auto-Direction Sensing
RoHS	RoHS
Output Type	Open Drain, Push-Pull
