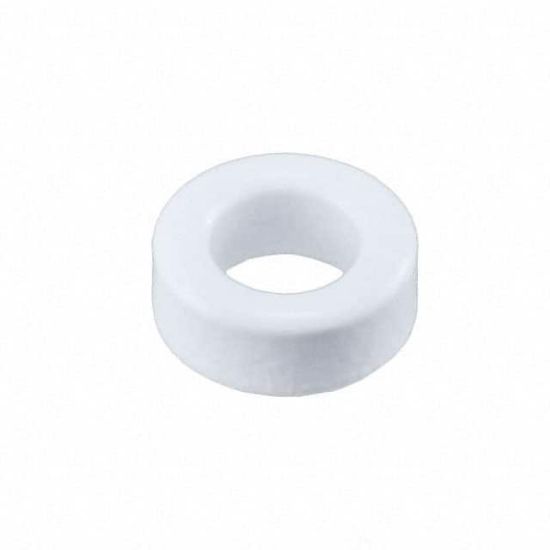

TX16/9.1/4.7-3C90

FERRITE CORES ROUND

1 review(s) | Add your review

Availability: In stock

Manufacturer: Ferroxcube

SKU: TX16/9.1/4.7-3C90

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TX16/9.1/4.7-3C90 Description

Minimum Core Cross Section (Amin) mm2	-
Effective Length (le) mm	-
Effective Permeability (μe)	-
Core Type	Toroid
Effective Magnetic Volume (Ve) mm3	-
Gap	-
Finish	Epoxy
Initial Permeability (μi)	-
Package	Bulk
Diameter	0.635\" (16.13mm)
Length	-
Tolerance	-
Core Factor (ΣI/A) mm^-1	-
Width	-
Height	0.195\" (4.95mm)
Supplier Device Package	TX 16 x 9.1 x 4.7
Material	3C90
RoHS	RoHS
Effective Area (Ae) mm2	-
Inductance Factor (Al)	-
