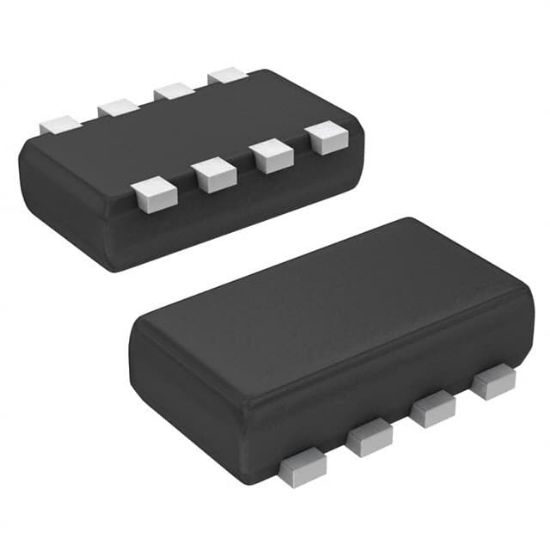

TT8U2TCR

MOSFET P-CH 20V 2.4A 8TSST

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rohm Semiconductor

SKU: TT8U2TCR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TT8U2TCR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
U02	TT8U2TCR		TSST8	0	1.5V Drive Pch+SBD MOSFET

Operating Temperature	150°C (TJ)
FET Feature	Schottky Diode (Isolated)
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	2.4A (Ta)
Rds On (Max) @ Id, Vgs	105mOhm @ 2.4A, 4.5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Package	Tape & Reel (TR)
Power Dissipation (Max)	1.25W (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±10V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	6.7 nC @ 4.5 V
Supplier Device Package	8-TSST
Input Capacitance (Ciss) (Max) @ Vds	850 pF @ 10 V
RoHS	RoHS
