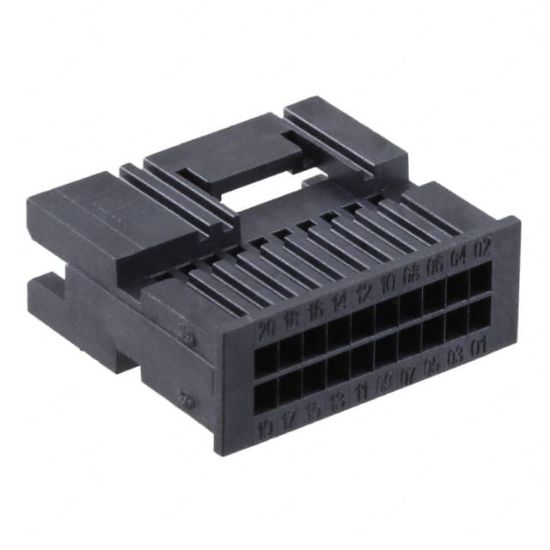

TSDF-10-D-S-L

CONN HSG 20POS 1.27MM

1 review(s) | Add your review

Availability: In stock

Manufacturer: Samtec Inc.

SKU: TSDF-10-D-S-L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TSDF-10-D-S-L Description

Pitch	0.050\" (1.27mm)
Mounting Type	Free Hanging (In-Line)
Color	Black
Number of Rows	2
Row Spacing	0.050\" (1.27mm)
Package	Bag
Connector Type	-
Fastening Type	Friction Lock
Contact Type	Male Pin
Features	-
Number of Positions	20
RoHS	RoHS
Contact Termination	Crimp
