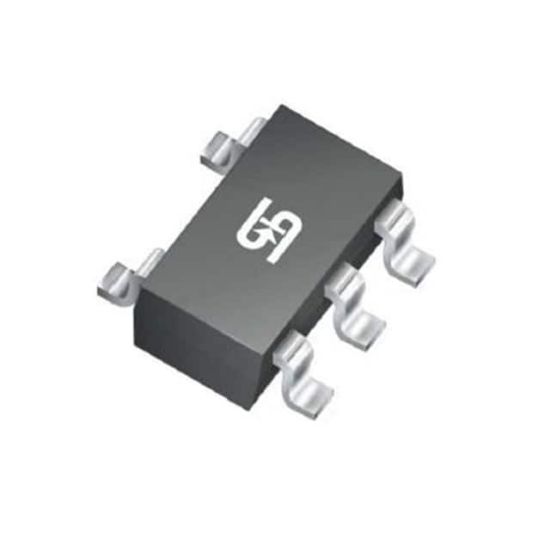

TS5205CX550 RFG

IC REG LINEAR 5V 150MA SOT25

1 review(s) | Add your review

Availability: In stock

Manufacturer: Taiwan Semiconductor Corporation

SKU: TS5205CX550 RFG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TS5205CX550 RFG Description

Operating Temperature	-40°C ~ 125°C (TJ)
Voltage Dropout (Max)	0.275V @ 150mA
Voltage - Output (Min/Fixed)	5V
Mounting Type	Surface Mount
Current - Output	150mA
PSRR	75dB (100Hz)
Current - Supply (Max)	1.9 mA
Protection Features	Over Temperature
Output Configuration	Positive
Package	Tape & Reel (TR)
Control Features	Current Limit, Enable
Voltage - Input (Max)	16V
Supplier Device Package	SOT-25
Number of Regulators	1
Current - Quiescent (Iq)	125 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
