TS1100-25EG5T

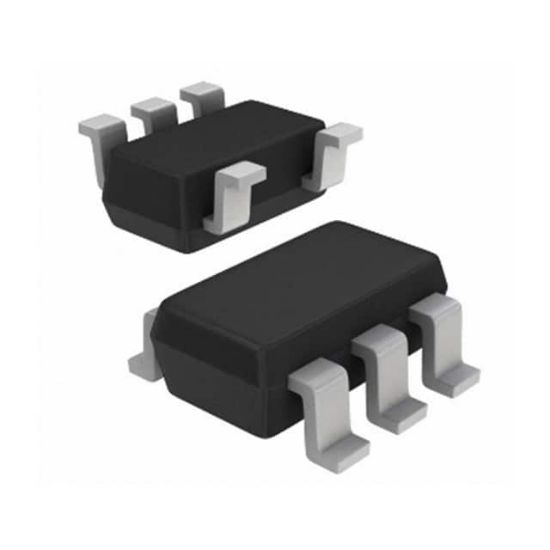

IC CURR SENSE 1 CIRCUIT SOT23-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Silicon Labs

SKU: TS1100-25EG5T

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TS1100-25EG5T Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TADJ	TS1100-25EG5T		SOT23-5	0	+2.0V TO 25V, 1�A, 30�V VOS PRECISION CURRENT-SENSE AMPLIFIER

Operating Temperature	-40°C ~ 105°C
Current - Input Bias	-
Mounting Type	Surface Mount
Current - Output / Channel	-
Slew Rate	-
Number of Circuits	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Gain Bandwidth Product	-
Voltage - Input Offset	30 μV
Amplifier Type	Current Sense
Supplier Device Package	SOT-23-5
Voltage - Supply Span (Max)	25 V
Voltage - Supply Span (Min)	2 V
-3db Bandwidth	6 kHz
RoHS	RoHS
Current - Supply	680nA
Output Type	-
