TP2522N8-G

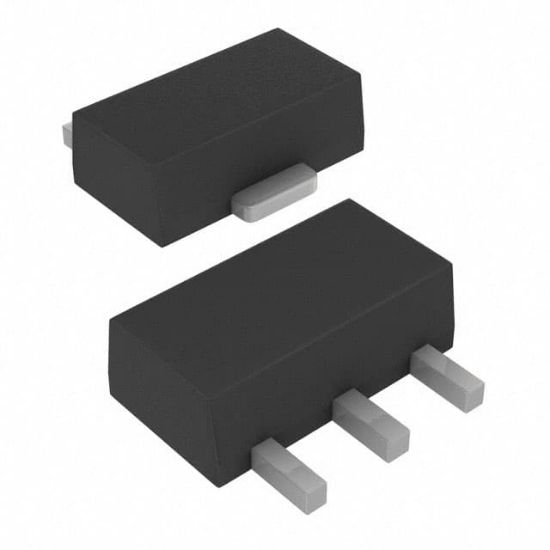

MOSFET P-CH 220V 260MA TO243AA

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: TP2522N8-G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TP2522N8-G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TP5Cx	TP2522N8-G		SOT-89	0	P-Channel Enhancement Mode Vertical DMOS FET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	260mA (Tj)
Rds On (Max) @ Id, Vgs	12Ohm @ 200mA, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	1.6W (Ta)
Drain to Source Voltage (Vdss)	220 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-
Supplier Device Package	TO-243AA (SOT-89)
Input Capacitance (Ciss) (Max) @ Vds	125 pF @ 25 V
RoHS	RoHS
