TMS320F2811PBKA

IC MCU 32BIT 256KB FLASH 128LQFP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TMS320F2811PBKA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TMS320F2811PBKA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
320F2811PBKA TMS	TMS320F2811PBKA	TI	128	0	32-Bit Digital Signal Controller with Flash

Number of I/O	56
Core Processor	C28x
EEPROM Size	-
Data Converters	A/D 16x12b
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)

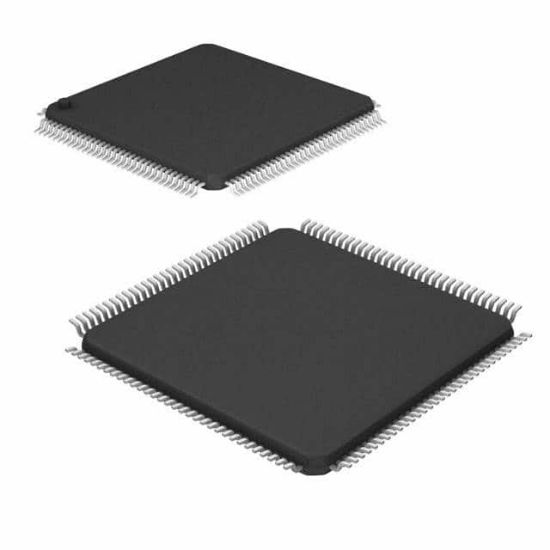

Supplier Device Package	128-LQFP (14x14)
Core Size	32-Bit
Program Memory Size	256KB (128K x 16)
Package	Tray
Oscillator Type	Internal
Voltage - Supply (Vcc/Vdd)	1.81V ~ 2V
Program Memory Type	FLASH
Peripherals	DMA, POR, PWM, WDT
Connectivity	CANbus, McBSP, SCI, SPI, UART/USART
RoHS	RoHS
Speed	150MHz
RAM Size	18K x 16
