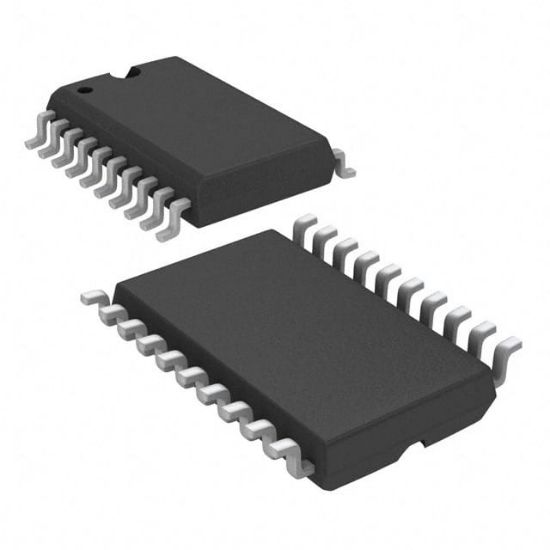

TLC7528IDWG4

IC DAC 8BIT A-OUT 20SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: TLC7528IDWG4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TLC7528IDWG4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TLC7528I	TLC7528IDWG4	TI	20	0	8-Bit, 0.1 us Dual MDAC, Parallel Input, Fast Control Signalling for DSP, Easy Micro I/F

Operating Temperature	-25°C ~ 85°C
Data Interface	Parallel
Differential Output	No
INL/DNL (LSB)	±0.5 (Max), ±0.5 (Max)
Reference Type	External
Mounting Type	Surface Mount
Supplier Device Package	20-SOIC
Number of Bits	8
Package	Bulk,Tube
Architecture	R-2R
Number of D/A Converters	2
Voltage - Supply, Analog	5V ~ 15V
Settling Time	100ns
RoHS	RoHS
Voltage - Supply, Digital	5V ~ 15V
Output Type	Current - Unbuffered
