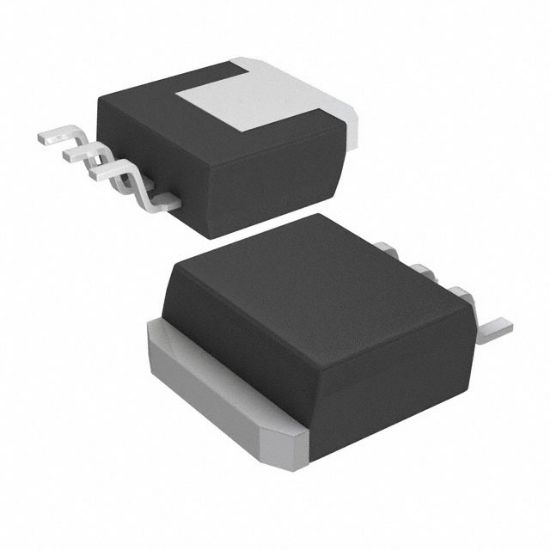

TL750L05CKTTRG3

IC REG LIN 5V 150MA DDPAK/TO263

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TL750L05CKTTRG3

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TL750L05CKTTRG3 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TL750L05C	TL750L05CKTTRG3	TI	3	0	Single Output LDO, 150mA, Fixed(5.0V), Low Quiescent Current, 60V Load Dump Protection

Operating Temperature	0°C ~ 125°C
Voltage Dropout (Max)	0.6V @ 150mA
Voltage - Output (Min/Fixed)	5V
Mounting Type	Surface Mount
Current - Output	150mA
PSRR	65dB (120Hz)
Current - Supply (Max)	12 mA
Protection Features	Over Current, Over Temperature, Over Voltage, Reverse Polarity
Output Configuration	Positive
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Control Features	-
Voltage - Input (Max)	26V
Supplier Device Package	DDPAK/TO-263-3
Number of Regulators	1
Current - Quiescent (Iq)	2 mA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
