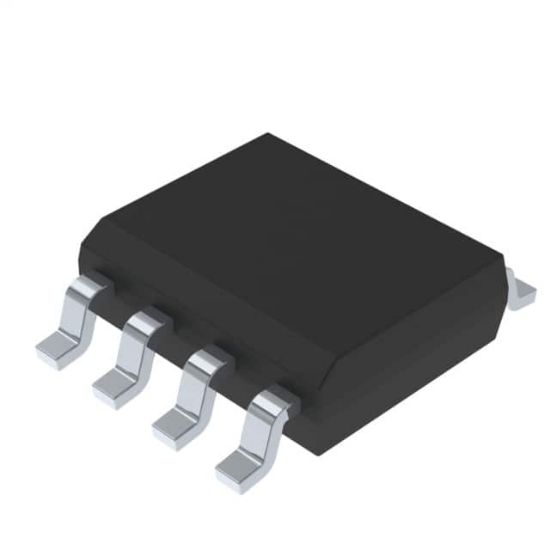

TL1431AID

IC VREF SHUNT ADJ 0.25% 8SO

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: TL1431AID

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TL1431AID Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
1431AI	TL1431AID		SO-8	0	Programmable voltage reference

Operating Temperature	-40°C ~ 105°C (TA)
Voltage - Output (Min/Fixed)	2.5V
Mounting Type	Surface Mount
Current - Output	100 mA
Noise - 10Hz to 10kHz	-
Reference Type	Shunt
Noise - 0.1Hz to 10Hz	-
Voltage - Output (Max)	36 V
Voltage - Input	-
Package	Tube
Current - Cathode	700 μA
Tolerance	±0.25%
Supplier Device Package	8-SOIC
Temperature Coefficient	100ppm/°C
RoHS	RoHS
Current - Supply	-
Output Type	Adjustable
