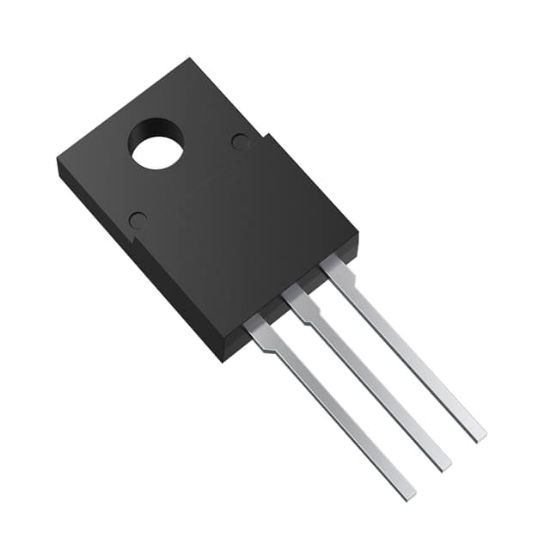

TK100A08N1,S4X

MOSFET N-CH 80V 100A TO220SIS

1 review(s) | Add your review

Availability: In stock

Manufacturer: Toshiba Semiconductor and Storage

SKU: TK100A08N1,S4X

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TK100A08N1,S4X Description

Operating Temperature	150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Rds On (Max) @ Id, Vgs	3.2mOhm @ 50A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	45W (Tc)
Drain to Source Voltage (Vdss)	80 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	130 nC @ 10 V
Supplier Device Package	TO-220SIS
Input Capacitance (Ciss) (Max) @ Vds	9000 pF @ 40 V
RoHS	RoHS
