TDZ7V5J,115

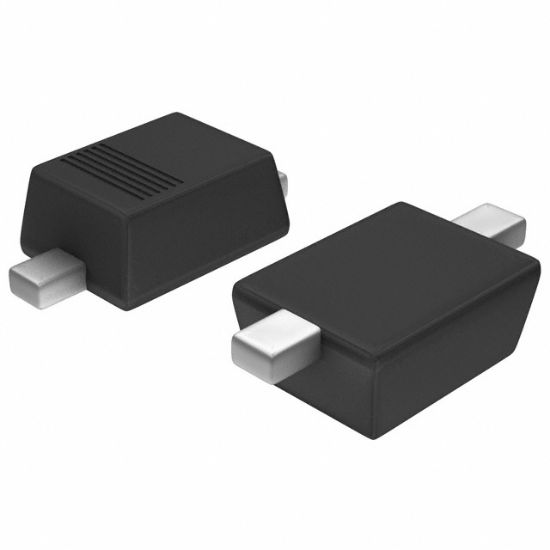

DIODE ZENER 7.5V 500MW SOD323F

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: TDZ7V5J,115

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TDZ7V5J,115 Description

Impedance (Max) (Zzt)	10 Ohms
Power - Max	500 mW
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 100 mA
Operating Temperature	-55°C ~ 150°C
RoHS	RoHS
Current - Reverse Leakage @ Vr	1 μA @ 5 V
Mounting Type	Surface Mount
Supplier Device Package	SOD-323F
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Zener (Nom) (Vz)	7.5 V
Tolerance	±2%
