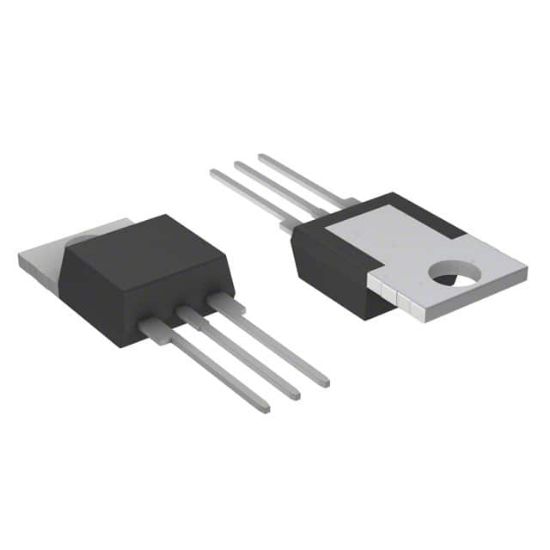

SV6020L1TP

SCR 20A 600V HI TEMP TO220L

1 review(s) | Add your review

Availability: In stock

Manufacturer: Littelfuse Inc.

SKU: SV6020L1TP

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SV6020L1TP Description

Littelfuse SVxx12-25xx High Junction Temperature SCRs

Littelfuse?SVxx12-25xx High Junction Temperature SCRs feature a low gate current trigger level of 6mA or 10mA maximum at approximately 1.5V. The SVxx12-25xx SCRs operate at -40°C to 150°C junction temperature range and 600V voltage rating. These SCRs are used in applications such as phase?control in heating, motor speed controls, converters/rectifiers, inrush current control, and capacitive discharge?ignitions.

Operating Temperature	-40°C ~ 150°C (TJ)
Current - Off State (Max)	10 μA
Mounting Type	Through Hole
Supplier Device Package	ITO-220AB
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Voltage - Off State	600 V
Current - On State (It (AV)) (Max)	12.8 A
Current - Gate Trigger (Igt) (Max)	6 mA
Package	Tube
Current - Non Rep. Surge 50, 60Hz (Itsm)	225A, 300A
Current - On State (It (RMS)) (Max)	20 A
SCR Type	Sensitive Gate
Voltage - On State (Vtm) (Max)	1.6 V
Current - Hold (Ih) (Max)	22 mA
RoHS	RoHS
