STTH30W03CW

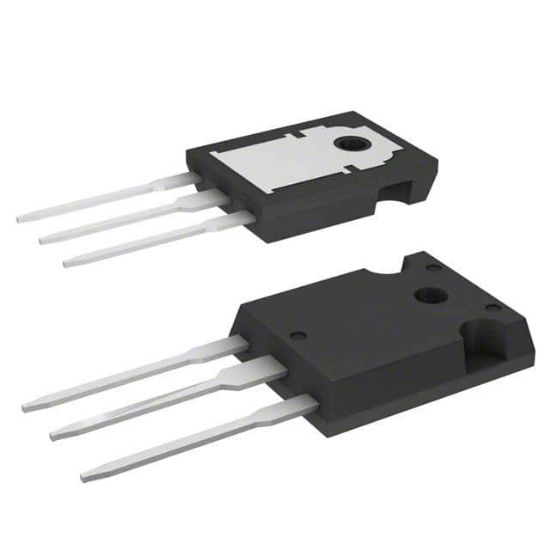

DIODE ARRAY GP 300V 15A TO247

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STTH30W03CW

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STTH30W03CW Description

Current - Average Rectified (Io) (per Diode)	15A
Mounting Type	Through Hole
Supplier Device Package	TO-247
Diode Type	Standard
Operating Temperature - Junction	175°C (Max)
Package	Tube
Voltage - Forward (Vf) (Max) @ If	1.4 V @ 15 A
Current - Reverse Leakage @ Vr	10 μA @ 300 V
Reverse Recovery Time (trr)	20 ns
Voltage - DC Reverse (Vr) (Max)	300 V
Diode Configuration	1 Pair Common Cathode
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
