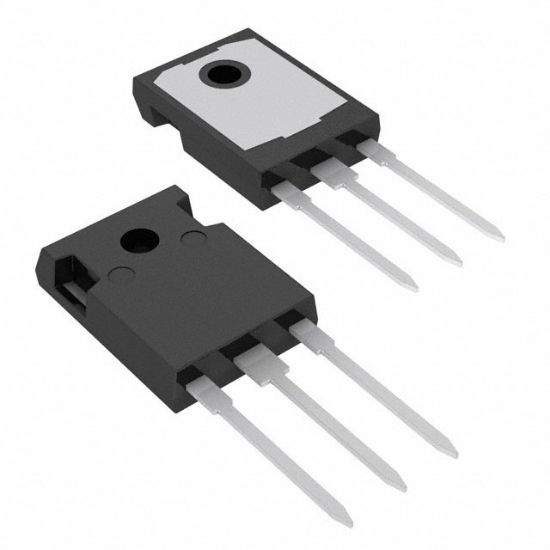

STGWA100H65DFB2

TRENCH GATE FIELD-STOP, 650 V, 1

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STGWA100H65DFB2

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STGWA100H65DFB2 Description

Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	145 A
Supplier Device Package	TO-247 Long Leads
Gate Charge	288 nC
Voltage - Collector Emitter Breakdown (Max)	650 V
Power - Max	441 W
IGBT Type	Trench Field Stop
Package	Tube
Current - Collector Pulsed (Icm)	300 A
Td (on/off) @ 25°C	30ns/130ns
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 100A
Test Condition	400V, 100A, 2.2Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	123 ns
Switching Energy	2.2mJ (on), 1.4mJ (off)
RoHS	RoHS
