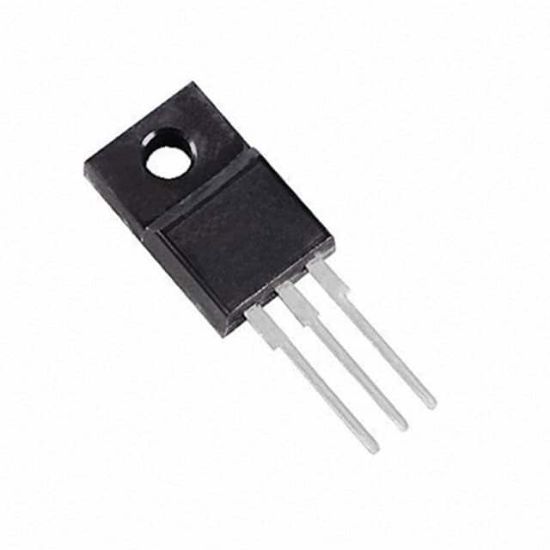

STF15N80K5

MOSFET N-CH 800V 14A TO220FP

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STF15N80K5

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STF15N80K5 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Rds On (Max) @ Id, Vgs	375mOhm @ 7A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	35W (Tc)
Drain to Source Voltage (Vdss)	800 V
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	5V @ 100μA
Gate Charge (Qg) (Max) @ Vgs	32 nC @ 10 V
Supplier Device Package	TO-220FP
Input Capacitance (Ciss) (Max) @ Vds	1100 pF @ 100 V
RoHS	RoHS
