STB23NM60ND

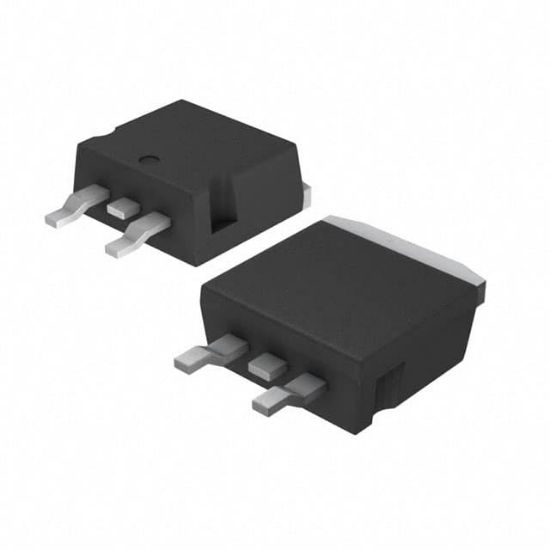

MOSFET N-CH 600V 19.5A D2PAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STB23NM60ND

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STB23NM60ND Description

Operating Temperature	150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	19.5A (Tc)
Rds On (Max) @ Id, Vgs	180mOhm @ 10A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	150W (Tc)
Drain to Source Voltage (Vdss)	600 V
Vgs (Max)	±25V
Vgs(th) (Max) @ Id	5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	70 nC @ 10 V
Supplier Device Package	D2PAK
Input Capacitance (Ciss) (Max) @ Vds	2050 pF @ 50 V
RoHS	RoHS
