STB120NF10T4

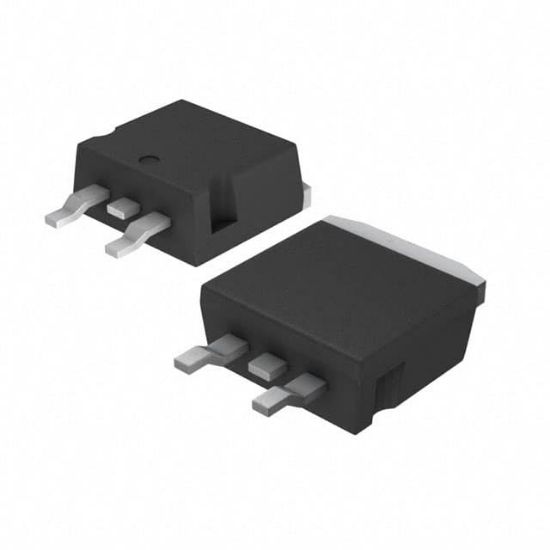

MOSFET N-CH 100V 110A D2PAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STB120NF10T4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STB120NF10T4 Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	110A (Tc)
Rds On (Max) @ Id, Vgs	10.5mOhm @ 60A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	312W (Tc)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	233 nC @ 10 V
Supplier Device Package	D2PAK
Input Capacitance (Ciss) (Max) @ Vds	5200 pF @ 25 V
RoHS	RoHS
