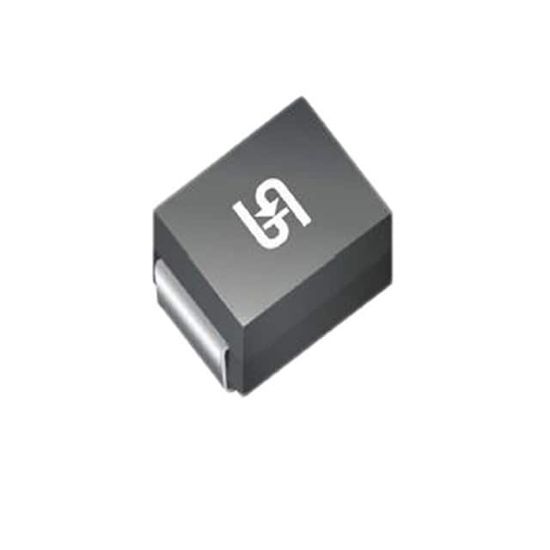

SS315HR7G

DIODE SCHOTTKY 150V 3A DO214AB

1 review(s) | Add your review

Availability: In stock

Manufacturer: Taiwan Semiconductor Corporation

SKU: SS315HR7G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SS315HR7G Description

Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Supplier Device Package	DO-214AB (SMC)
Diode Type	Schottky
Operating Temperature - Junction	-55°C ~ 150°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	950 mV @ 3 A
Current - Reverse Leakage @ Vr	100 μA @ 150 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	150 V
Current - Average Rectified (Io)	3A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
