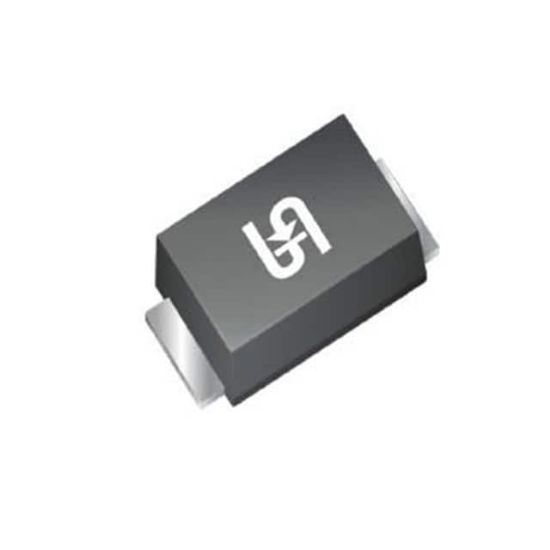

SS23L RUG

DIODE SCHOTTKY 30V 2A SUB SMA

1 review(s) | Add your review

Availability: In stock

Manufacturer: Taiwan Semiconductor Corporation

SKU: SS23L RUG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SS23L RUG Description

Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Supplier Device Package	Sub SMA
Diode Type	Schottky
Operating Temperature - Junction	-55°C ~ 150°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	500 mV @ 2 A
Current - Reverse Leakage @ Vr	400 μA @ 30 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	30 V
Current - Average Rectified (Io)	2A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
